Applications & Industries
From the wellhead to the tap, ZONX clad pipes solve corrosion challenges across six critical industries worldwide.

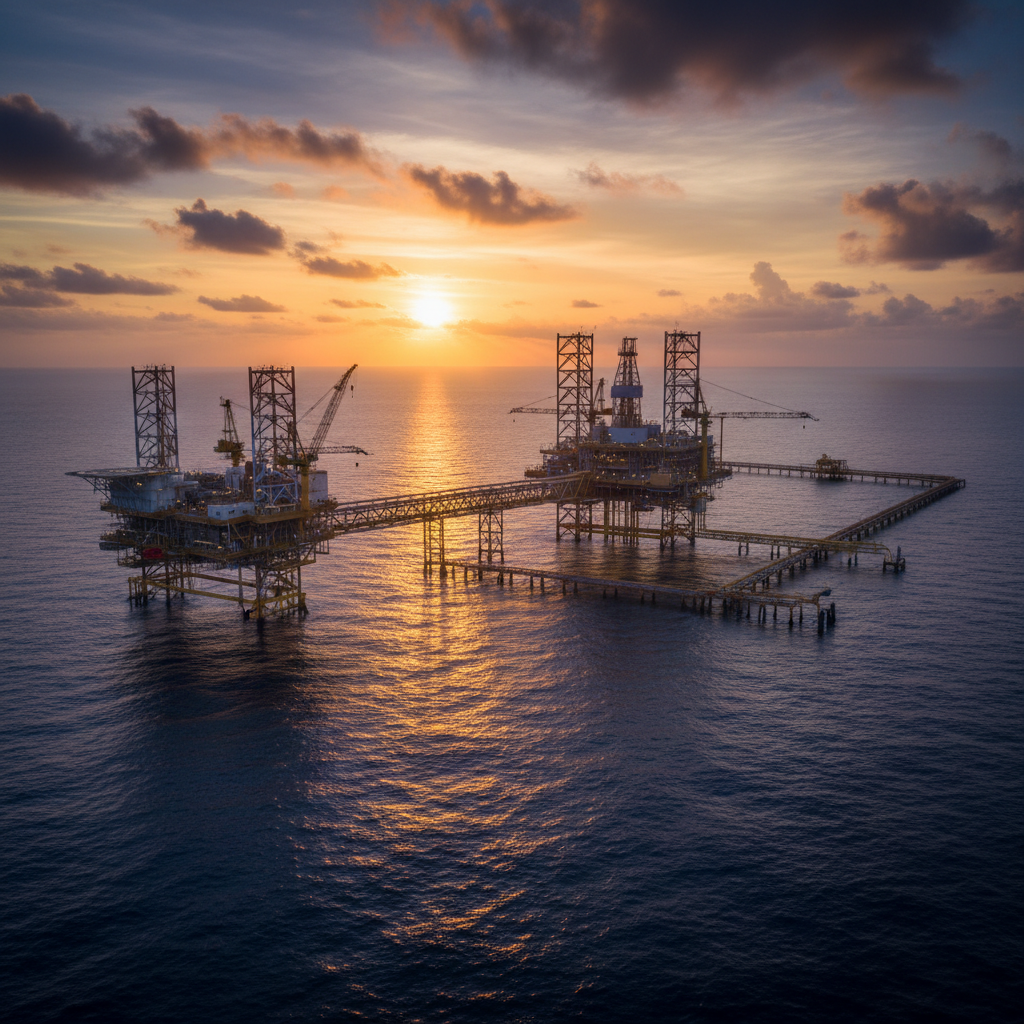

Oil & Gas
The Challenge
Crude oil and natural gas contain sulfur, acid, and CO₂ that cause corrosion rates exceeding 1 mm/year. Traditional stainless steel pipes are prohibitively expensive for long-distance pipelines.
The ZONX Solution
CRA Clad Steel Pipe (DURACORE) combines carbon steel strength with corrosion-resistant alloy liners (316L, 825, 625) at 30–50% lower cost than solid alloy pipes. API-5LD certified for oil & gas transmission.

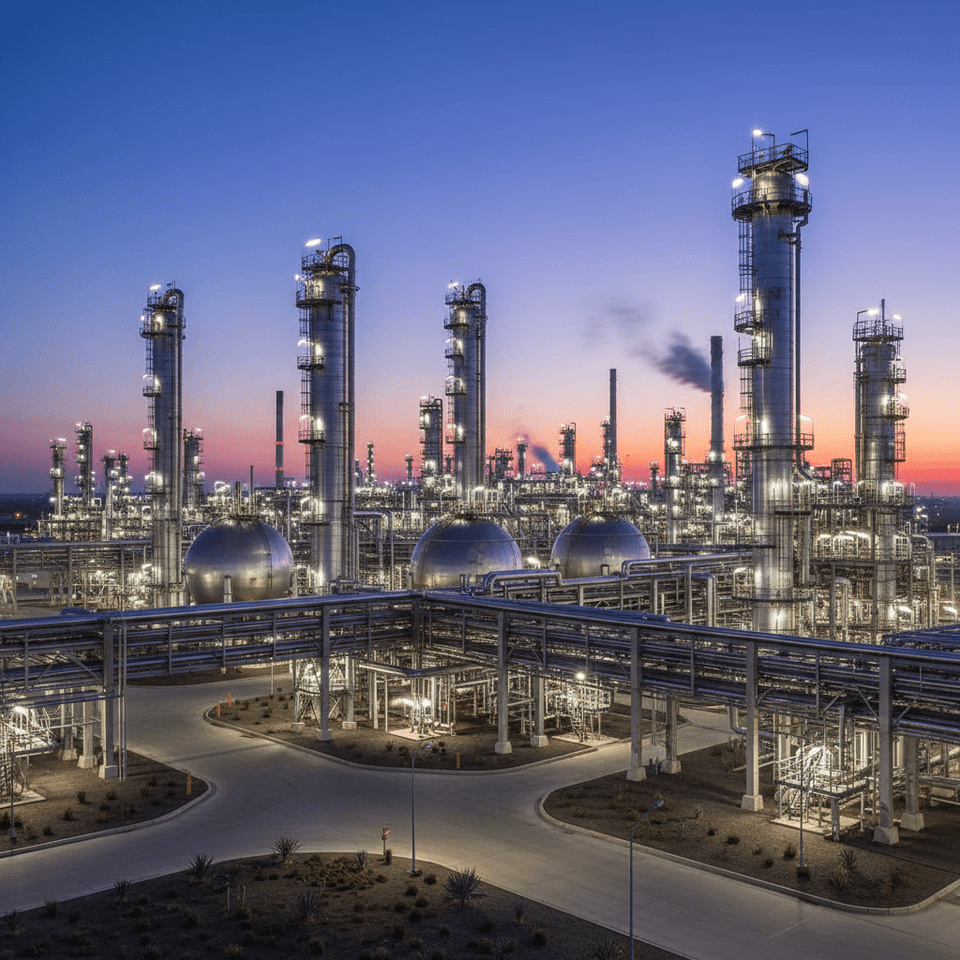

Chemical & Petrochemical
The Challenge
Chemical processing involves highly corrosive media — chlorides, sulfates, acids — that destroy standard carbon steel pipes within months, causing unplanned shutdowns and safety hazards.
The ZONX Solution
Custom-lined pipes with duplex stainless steel (2205), Incoloy 825, or Hastelloy C-276 liners. Bonding strength ≥ 0.8 MPa ensures the liner never delaminates, even under thermal cycling.
Power Generation
The Challenge
Power plants face dual challenges: high-temperature steam corrosion in boiler feedwater systems and flue gas desulfurization (FGD) slurry erosion. Standard pipes last less than 5 years.
The ZONX Solution
Enhanced Stainless Steel Pipe (POWERCORE) with carbon steel outer protection and 310S/316L inner pipes. Withstands temperatures up to 350°C while maintaining corrosion resistance in condensate and desalination systems.

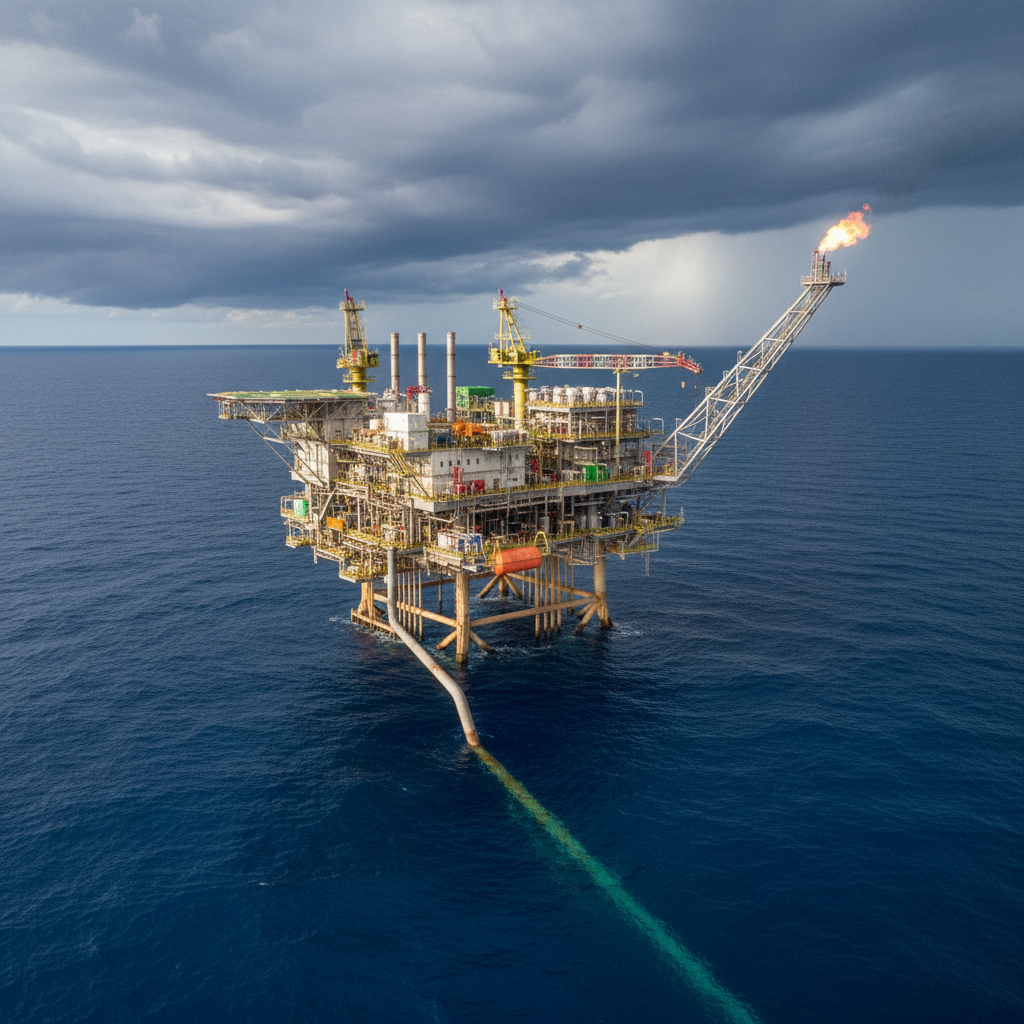

Marine & Offshore
The Challenge
Seawater contains chloride concentrations > 20,000 ppm that aggressively attack carbon steel. Tidal fatigue and subsea pressure create additional failure modes for conventional piping.
The ZONX Solution
Marine-grade clad pipes with titanium (TA2/TA9) or super-duplex liners bonded to high-strength carbon steel outer pipes. Full-shield dual-seal fittings prevent galvanic corrosion at joints.

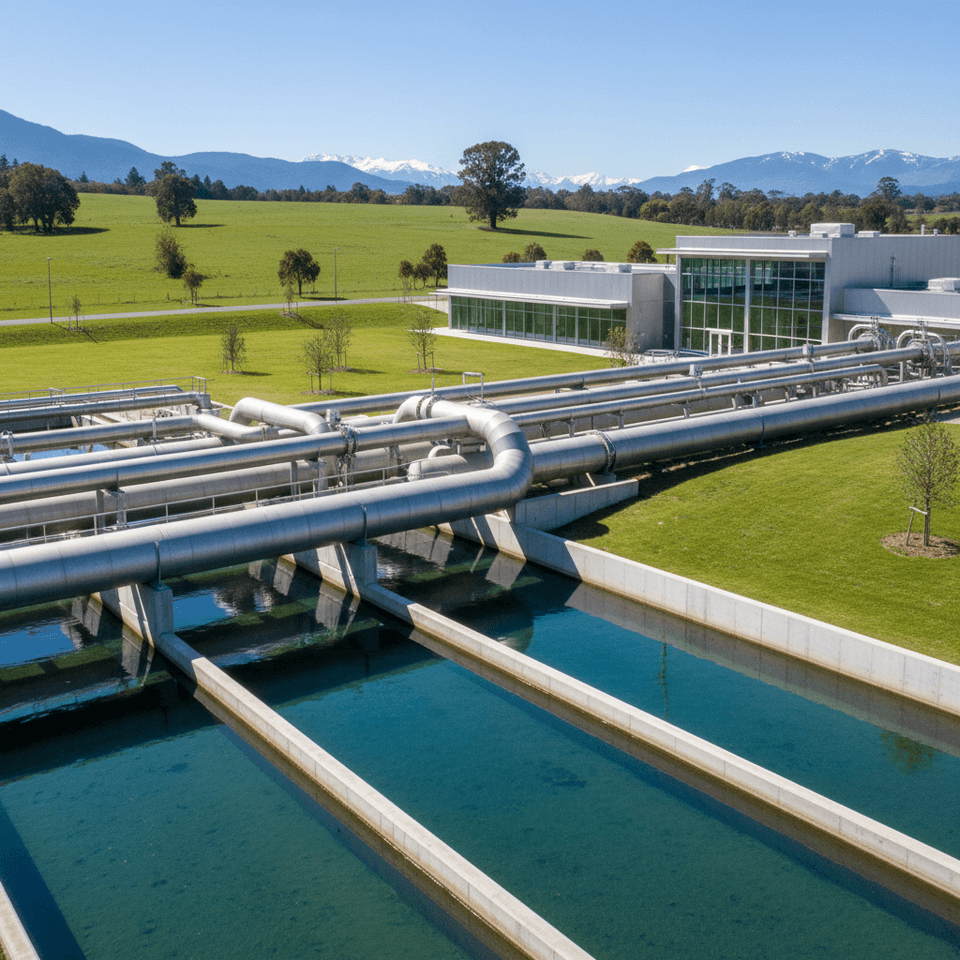

Water & Infrastructure
The Challenge
Traditional galvanized and ductile iron pipes corrode within 3–5 years, causing rust contamination, high leakage rates (>10%), and frequent maintenance. Replacement costs are substantial for municipal networks.
The ZONX Solution
Lined Stainless Steel Pipe (AQUACORE) provides a food-grade 304/316L inner surface that never corrodes. Service life matches building lifespan. GB/T 17219 certified for drinking water.
Mining & Slurry
The Challenge
Mining slurries and tailings contain chlorides, sulfates, and acids at pH < 2 — destroying carbon steel pipes within months. Western Australia operates slurry pipelines up to 300 km long; corrosion failure is not an option.
The ZONX Solution
Clad pipes with duplex stainless (2205) or super-duplex liners withstand the most aggressive mine waters and slurries. Bonding strength ≥ 0.8 MPa ensures the liner stays bonded under abrasion, pressure, and thermal cycling.
Material Selection Guide
Match your media to the optimal CRA grade and product line
| Media / Application | Recommended CRA | Product Line | Standard |
|---|---|---|---|
| Crude oil / Sour gas (H₂S) | 316L, 825, 625 | DURACORE | API 5LD |
| Sulfuric acid / Chlorides | 2205, 825, C-276 | DURACORE | API 5LD / ASME |
| High-temperature steam | 310S, 316L | POWERCORE | GB/T 31940 |
| Drinking water / Fire water | 304, 316L | AQUACORE | GB/T 17219 |
| Seawater / Brine | TA2, 2205, 2507 | DURACORE | API 5LD / DNV |
| Mining slurry / Tailings (pH < 2) | 2205, 2507 | DURACORE | API 5LD |
| CO₂ sequestration | 316L, 825 | DURACORE | API 5LD / DNV |
| Chemical wastewater | 316L, 2205 | DURACORE / AQUACORE | API 5LD / GB/T |
Not sure which solution fits your application?
Our engineers analyze your media composition, temperature, pressure, and operating environment to recommend the optimal material combination and pipe specification.
Talk to an Engineer
